High-temperature Condensed Water Oil and Iron Removal Device

Product Overview

High-temperature Condensed Water Treatment

Advanced oil and iron removal technology

When high-temperature condensed water of petroleum and petrochemical enterprises is reclaimed, boilers have strict requirements for the control of oil content in process medium (such as water). According to the national standard GB/T12145-1999, oil content in high-pressure steam boilers must be ≤0.3mg/L, and oil content in once-through high-pressure boilers must be ≤0.1mg/L.

Traditional oil-removal processes face limitations such as incoming water oil content restrictions, frequent backwashing, and poor quality of outgoing water, resulting in significant condensed water waste with receiving water rates below 70%.

Key Advantages

No chemicals added - environmentally friendly operation
No backwashing required - continuous operation
No limit to oil content of incoming water
Highest oil removal accuracy below 0.1ppm
Water receiving rate above 99%
20-40% higher efficiency than industry standards

Technology Comparison

Traditional Methods

Limited by incoming water oil content
Requires frequent backwashing
Poor quality of outgoing water
Wastes significant condensed water
Water receiving rate below 70%
Higher operational costs

Bidun Solution

No limit to incoming water oil content
No backwashing required
Excellent outgoing water quality
Minimal water waste
Water receiving rate above 99%
Lower operational costs

Technical Specifications

The advanced condensed water oil & iron removal system of Bidun Company, mainly consisting of magnetic-gain iron removal and interception oil removal, can achieve the high-quality recycling goal of steam condensed water oil & iron removal in oil refining and petrochemical industry.

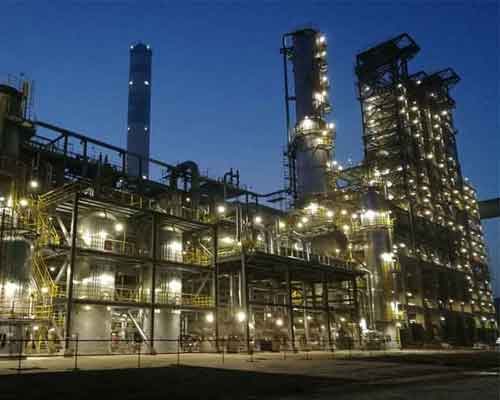

Over ten years, this technology equipment has been successfully applied in dozens of oversize petroleum and petrochemical enterprises, with continuous improvements in practice, making its advancement and economy constantly promoted, bringing considerable water conservation benefits to users.

Inflow Conditions of Process Condensed Water

Name	Unit	Inflow Index
PH₂₅	-	6.5-9.5
Inflow Pressure	Mpa	0.4-0.5
SS	mg/L	10
Oil	mg/L	100
Total Iron	mg/L	0.3
Temperature	°C	95

Outflow Index After Treatment

Name	Unit	Outflow Index
Oil	mg/L	≤0.3
Total Iron	mg/L	≤0.05

Process Flow

The Bidun condensed water oil & iron removal system utilizes a sophisticated process combining magnetic-gain iron removal and interception oil removal technologies to achieve optimal results.

Inlet & Pre-filtration

High-temperature condensed water enters the system and undergoes initial filtration to remove large particulates.

Magnetic Iron Removal

Advanced magnetic technology effectively removes iron particles from the water stream.

Interception Oil Removal

Proprietary interception membrane technology selectively removes oil content without chemicals.

Polishing & Outlet

Final polishing ensures water quality meets strict standards before exiting the system.
